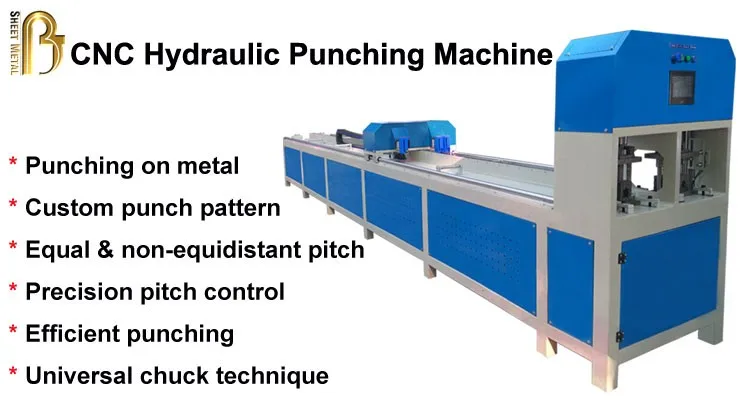

6.8m hydraulic steel tube pipe hole aluminium punching machine

FOB Reference Price:Get Latest Price
US $10,780-11,800 / Sets | 1 Set/Sets 6.8m hydraulic steel tube pipe hole aluminium punching machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Power Source:
Hydraulic
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Bojun tube punching machine
Model Number:
aluminum punching machine - 1
Voltage:
380V/220V Optional
Power(W):
7.5kw
Weight:
3500KG
Dimension(L*W*H):
6800L*1000W*1700H
Certification:
ISO9001:2008
Warranty:
12 months
After-sales Service Provided:
No overseas service provided
Punching thickness:
8mm
Suitable tubes:
Steel, stainless steel, aluminum tubes etc
Feeding way:
Automatic
Feature:
Precise hole pitch, simple handling
Qty of punching pipes:
Single or more tubes
Punching hole pitch:
Equal-spaced & non-equidistant punching
Tooling:
Free offered normal molds for tube under 38mm
Operator needed:
One person can handle 2-3 machines at the same time.
Application:
Making fence, rack, shelf, burglar mesh etc
Remark:
6.8m hydraulic steel tube pipe hole aluminium punching machine
SupplyAbility
SupplyAbility:
Set/Sets per Month 6.8m hydraulic steel tube pipe hole aluminium punching machine
Packaging & Delivery
Packaging Details
6800L*1000W*1700H(mm) steel structure, 2 sets of hydraulic punching machine can be loaded in one 40' container, 6.8m hydraulic steel tube pipe hole aluminium punching machine
Port
Guangzhou, Shenzhen, aluminum punching machine
Lead Time :
If stocks available, 3 days, aluminum punching machine
Product Description

6.8m hydraulic steel tube pipe hole aluminium punching machine

6.8m hydraulic steel tube pipe hole aluminium punching machine
Machine model
Aluminum punching  machine-1
Punching thickness
8mm
Controlling method
CNC
Pipe diameter
100mm maximum
Engine power
7.5KW
Processing length
6000mm
Voltage
380V / 50-60Hz
Distance tolerance
+/- 0.05mm
Punching speed
40-70 punching per minute
Machine dimension
6800*1000*1700 mm
Slide stroke
100mm
Machine weight
3500kg

Operation Steps

6.8m hydraulic steel tube pipe hole aluminium punching machine

1) Put in 170L hydraulic oil, press the start button near the touch screen.

2) Activating the motor from touch screen, input processing datas, such as punching length, hole diameter, qty of holes, hole pitch etc, inputting "COMPLETE" and place workpiece (tube or angle steel etc) in place for punching.

3) Step on foot switch, hydraulic clamp will clamp workpiece and move it to designated position, then step on foot switch once again to start automatic punching.

Product Advantages

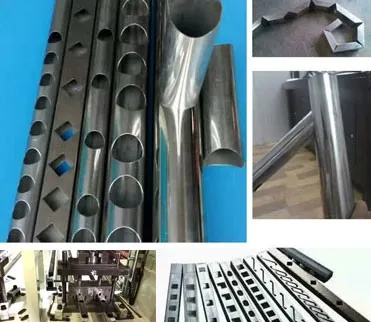

CNC punching on metal

Our hydraulic punching machine is suitable not only for metal tube / pipe, but also for metal profile, metal sheet, angle steel etc. Besides hole punching in custom patterns, our machine can also be used for cutting down the tubes etc. One machine can meet most of your needs!

Efficient processing

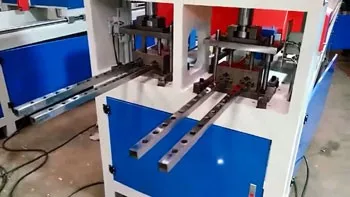

Punching mold for the hydraulic machine is designed by ourselves, there can be several workpieces in processing at the same time, 10 pieces maximum. This technique is unique in hydraulic punching industry. That makes our machine more efficient than other competitors.

Cosmetic Processing

Punched holes or patterns are cosmetic and no burrs, full hole or half hole punching can be switched by one simple button.

Variable hole pitch

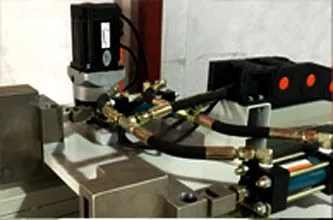

Servo motor and speed reducer work together to make sure workpiece is precisely sliding into punching position. The CNC hydraulic machine is controlled under PLC program, equal or non-equal hole pitch can be easily managed.


Precision CNC punching

The whole hydraulic tube punching machine is processed by planer milling machine to ensure flatness of working table, it also helps improving durability of punching mold. High precision gear rack and guide rail promise our punching tolerance is within 0.05mm.




Maintenance

6.8m hydraulic steel tube pipe hole aluminium punching machine. Any equipment need certain maintenance during usage to ensure its proper function and service life can be extended.


1. Use the hydraulic punching machine properly according to manual, please pay attention to routine maintenance of the machine.

2. Punching machine should be working under clean and ventilated environment, do not use the machine around inflammable and explosive environment. Please clean the hydraulic machine daily, get rid of the punching scrap in time.

3. Put some engine oil to gear rack and rail regularly, make sure they are smooth for machine operation.

4.If possible, customer may add some engine oil to punching mold as well to extend service life of punching mold.

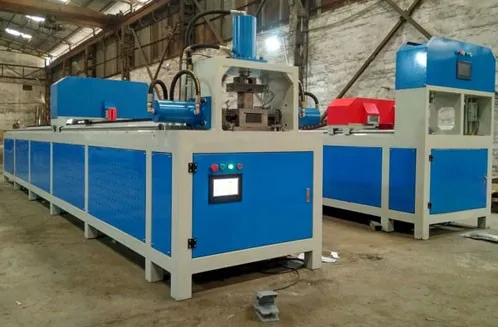

More photos
Packing & Delivery


Our automatic CNC hydraulic steel tube punching machine is 6800L*1000W*1700H(mm) steel structure, one 40' container can load two machines. Custom aluminum pipe hole hydraulic punching machine price.
